Products > Sensors Art. no. 461 6781

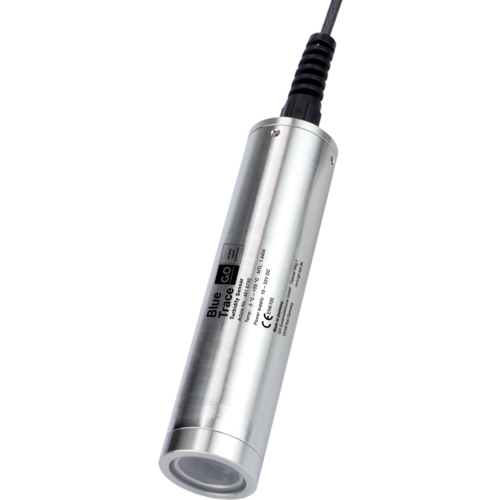

BlueTrace - Turbidity Sensor

Add to Watch-ListPrint
Art. no. 461 6781 - BlueTrace - Turbidity Sensor

The BlueTrace - Turbidity Sensor is a compact probe for the measurement of Turbidity and Total Suspended Solids (TSS) in water. The sensor works according to the scattered light measuring principle and features an integrated temperature compensation. The BlueTrace - Turbidity Sensor is a compact probe for the measurement of Turbidity and Total Suspended Solids (TSS) in water. The sensor works according to the scattered light measuring principle and features an integrated temperature compensation.


Functions & Features
Kalibration
Easy Calibration
Wählbarer Messbereich
Selectable Measuring Range
BUS Konnektivität Modbus
Modbus Interface
PC Programm
Freely Available PC-Program
Technichal data




Selectable options






Pos.
Measuring range
Art. no.



1
0-50 FNU
50



2
0-100 FNU
100


Inhalt
3
0-200 FNU
200



4
0-1000 FNU
1000



5
0-4000 FNU
4000










Pos.
Cable length
Art. no.


4
10 m
-10


5
25 m
-25









Pos.
Material
Art. no.

6
Stainless steel 1.4404
-VA

7
Titanium
-Tit








Configuration example art. no. 461 6781-50-10-VA
